Induction End Bar Heater
Induction End Bar Heater

Induction End Bar Heater

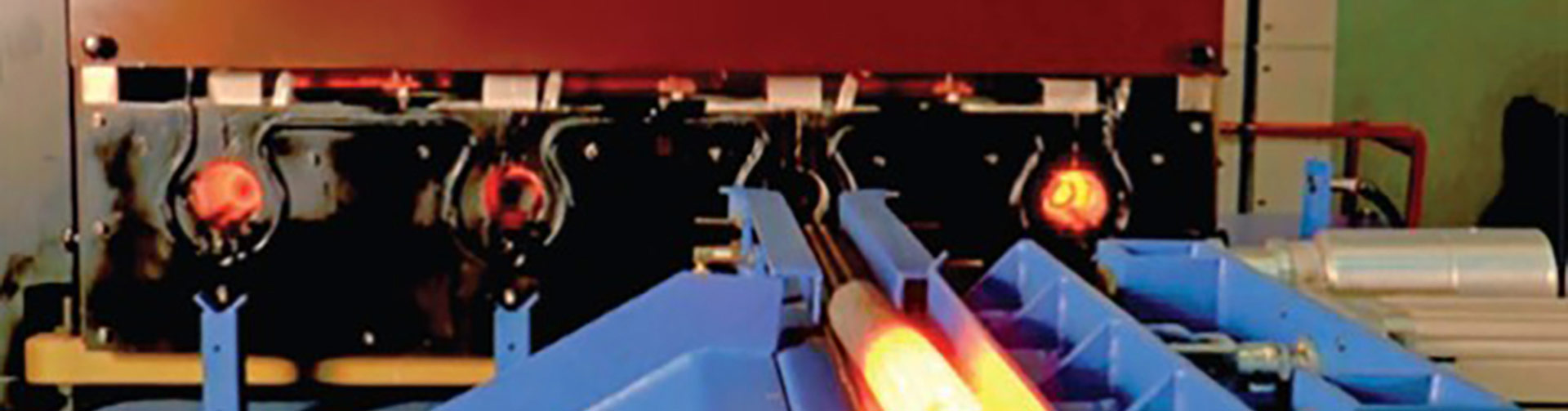

The process of bar end heating refers to heating the end of the bar or selected portion of bar for forging operation.

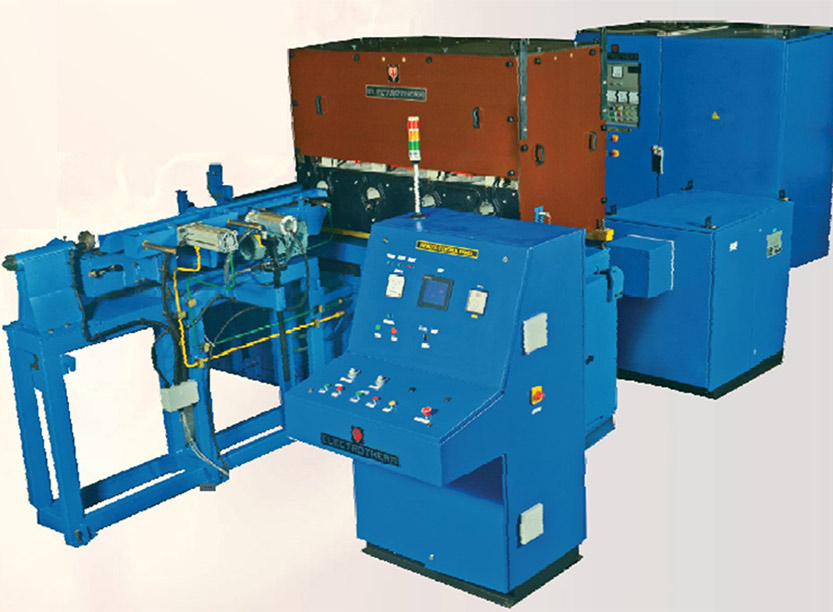

The induction end bar heater is provided with an energy-efficient digitally controlled IGBT-based power supply unit with built-in reliability and guaranteed performance. Fully tested single master digital control board for easy maintenance and direct replacement. FPGA-based fully digital control with LCD screen. Standard design with 6 pulse or 12 pulse converter. Suitable for ferrous and non-ferrous metal and single as well as both end heating applications.


  • High energy efficiency.
  • Enhanced productivity.
  • Optimum forging temperature.
  • Rapid start-up.
  • Reduced power consumption.
  • Higher quality output.
  • Increased die life.
  • Negligible scale loss.
  • Environment-friendly.
  • Low running cost.

Model # Induction End Bar Heater
Bar size Round 16 mm to 120 mm
Power rating 50 – 1500 kW
Frequency 500 Hz – 30 kHz
